7" Wired Video Door Phone System Visual Intercom Doorbell Monitor with 1*800x480 Monitor + 1*700TVL Outdoor Camera for Home Surveillance
* HD 700TVL: 700TVL CMOS color digital camera, made of acrylic panel+ABS plastic material. Waterproof and dust-proof.
7" LCD Display: 25 different kinds of chimes. Support don't disturb and one key to monitor, unlock, intercom. Volume, brightness and contrast are adjustable.
* 2-way Hands-free Intercom: When someone visits and presses the doorbell, then he/she will communicate with you soon.
* Color/IR Night Vision: Built-in 5pcs LEDs, support color/infrared night vision with great backlight compensation(BLC).
* One Key to Monitor: Press the monitor button, you can check the situation out of the door whenever, helps to protect your family.
* 2 Ways of Unlocking: Quickly unlocking your door by pressing the "unlocking" button remotely. Besides you can swipe your RFID card(included) on the doorbell.
* Easy Installation: Support max 6 indoor unit, which won't interfere with each other. One-to-one RVV4 connection or one-to-many RVV5 connection in the distance of 100m/328ft.
* Electric Lock: You can unlock your door remotely with specific electric lock (not included), such as magnetic lock, electric strike and electric bolt lock.
* Wide Application: Widely used in apartments, houses, villas, hotels, offices and public buildings.
- Resolution: 800*480
- Display: 7 inch Digital TFT LCD
- Chimes: 25 melodious chords
- Material: Acrylic Mirror,Metal Brushed Panel,ABS Bottom Shell
- Talk Time Delay: 90s
- Monitor Time Delay: 90s
- Wiring Method: One-to-one RVV4 / one-to-many RVV5
- Wiring Distance: 100m/328ft
- Installing Method: Wall Mount
- Relative Humidity: 10% to 90%(RH)
- Input Voltage: AC 100V-240V
- Output Voltage: DC 15V 1.2A
- Power: ≤1W(standby),≤10W(working)
- Dimensions: 230*165*20mm / 9.05*6.5*0.8 inch
- Lens: 90°
- Resolution: 700 Line
- Sensor: CMOS Color Digital
- Material: Acrylic Panel+ABS Plastic
- BLC: Support
- Night Vision: 5pcs IR LEDs
- Night Optimum Distance: 0.2-1.2m
- Wiring Method: RVV4
- Working Temperature: -30℃~60℃
- Power: ≤1W(standby),≤2W(working)
- Power Supply: 12-15V powered separately
- Dimensions: 180*98*35mm / 7.1*3.86*1.38 inch

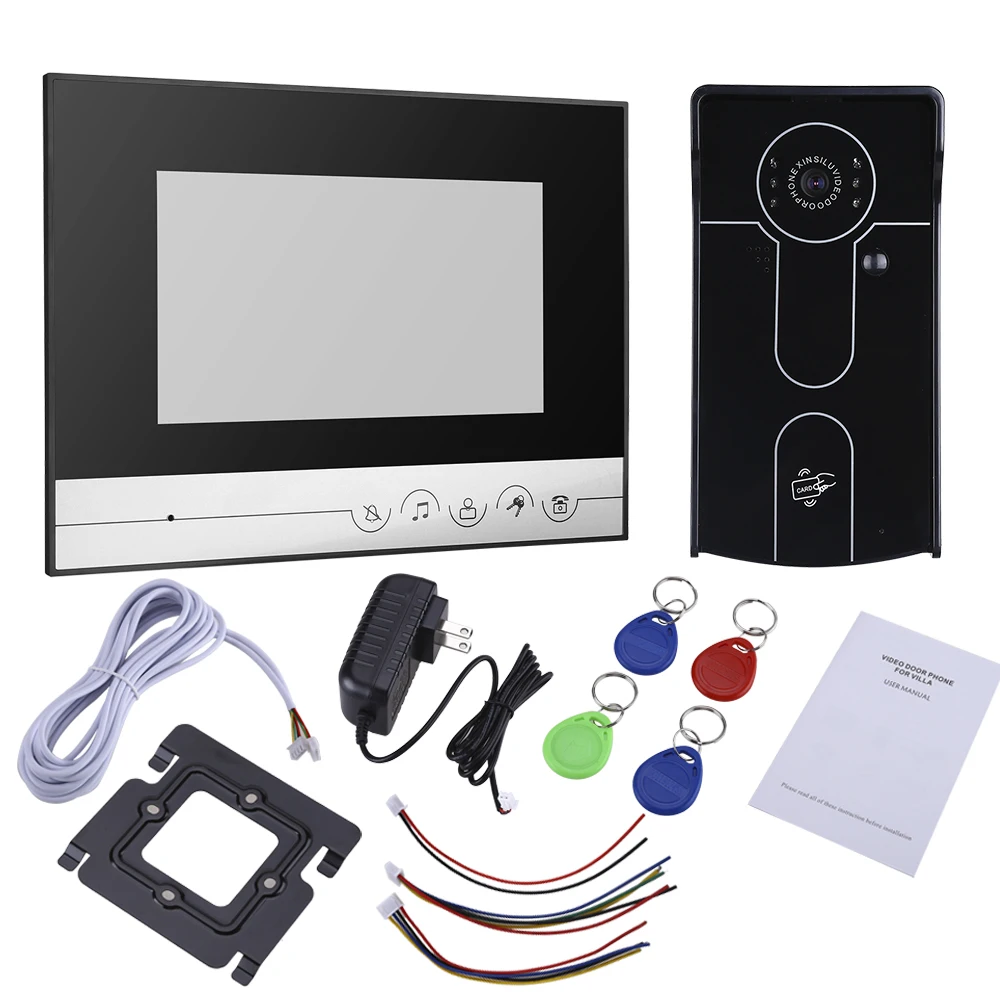

- 1x Indoor Screen
- 1x Outdoor Doorbell
- 1x Power Adapter
- 1x Wall Plate
- 1x 5-core Cable
- 1x 4-core Wire Terminal
- 1x 2-core Wire Terminal
- 2x RFID User Cards
- 2x RFID Add/Delete Cards
- 1x Screws Package
- 1x User Manual
